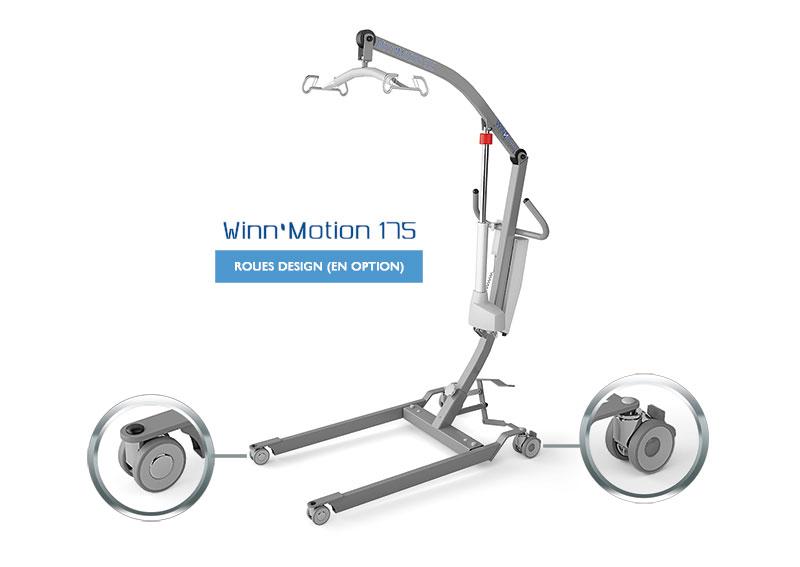

WINN’MOTION 175

TECHNICAL SECIFICATIONS

• Max patient weight: 175 kg
• FR Castors: 7.5cm
• RE Castors: 10cm
• Standards: ISO 10535
• Motorization: LINAK IP 54
• Weight: 36 kg

WARRANTY

• Remote control, electric and mechanical parts: 5 years
• Batteries, slings: 1 year

SAFETY

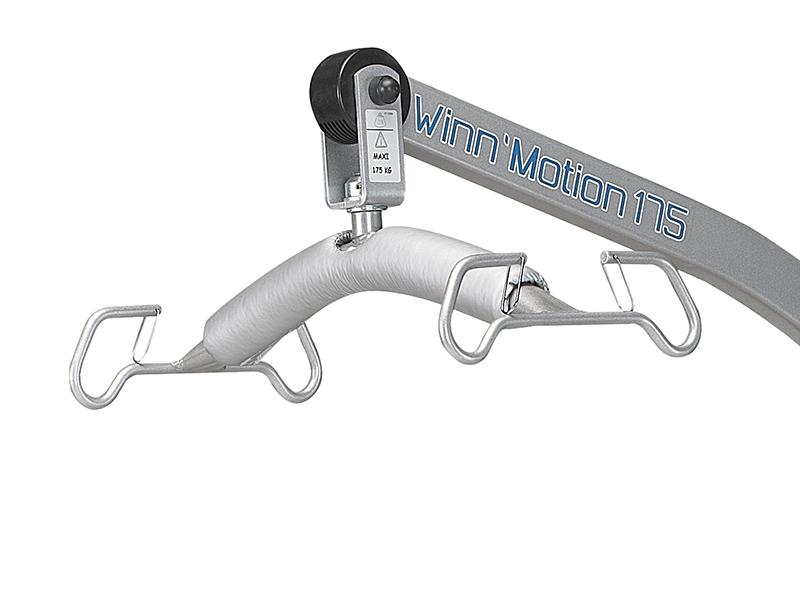

• Spreader bar padded and secured by suspension points fitted with a nonreturn
  system.

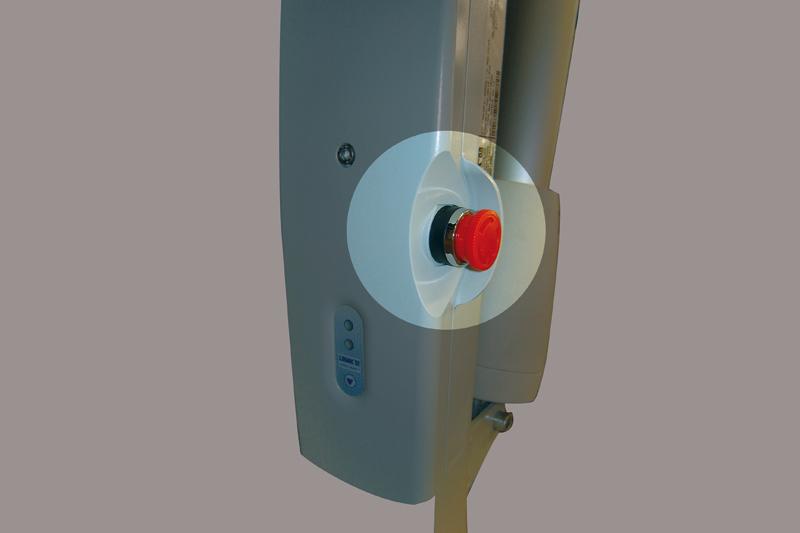

• Control box with emergency stop.
• Audible signal when battery is being charged.
• Electric emergency lowering system.
• Anti-collapse system.
• Jack can be released using an ergonomic rotary knob.
• Battery autonomy 40 cycles (24 volts) (1 cycle = 1 lift/1 lowering), time required for a full charge: 8 to 10 hours.

COMFORT

• Jack with anti-collapse system.
• Jack can be manually released using an ergonomic rotary knob.
• Feet can be manually moved further apart using a pedal system.

CONVENIENT

• Light and compact for use at home or in collective care setting.
• Easy to dismantle into 2 parts.
• Easy to transport and store away.
• Easy to handle: twin-wheel castors Ø 75 mm at the front and Ø100 mm at the rear.
• Weight: 36 kg.
• 360° spreader bar rotation.
• Design castors (optional).
